APPLICATION and DESCRIPTION

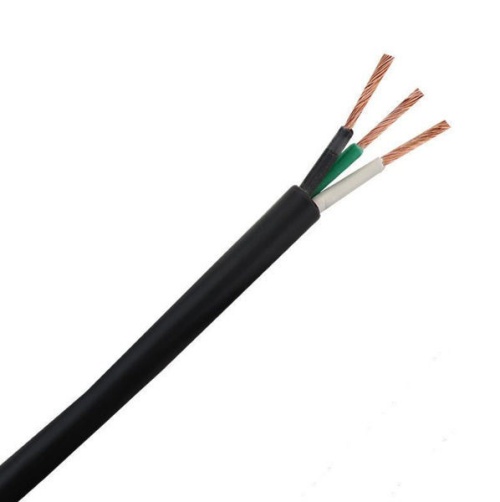

TheTSJ/TSJ-N cable is an insulated multiconductor composed by bunch-stranded annealed copper flexible conductors, each single core has a thermoplastic insulation of PVC(Polyvinyl Chloride) and its protected by a Nylon sheath, gathered helically and with a black weather resistant thermoplastic PVC(Polyvinyl Chloride) outer sheath.
TheTSJ/TSJ-N cable is widely used in wiring for low consumption appliances. It is also used in portable tools and lamps, as wellas in portable electrical extension cords.
- CONSTRUCTION
- 1. Conductor: Class 5, annealed soft fine wires
- 2.Insulation: 105°C PVC + Nylon
- 3.Outer sheath: PVC (BLACK)
- Core colors:
- 2 cores: black, white
- 3 cores: black, white, green
- 4 cores: black, white, red, green
- Cross section:
- From 18 AWG (0.824 mm2) to 6 AWG (13.3 mm2)
- STANDARD
- NTC 5521; ASTM B172; ASTM B174; UL-62; UL-83
Send More specification by email: supplier@huadongcablegroup.com
Similar Products
Especificación
| Core No. x Gauge | Nominal Cross Section Area | Nominal Cover Thickness | Approximate Total Diameter | Total Weight | Max. Conductor DC Resistance @20℃ |
||
|---|---|---|---|---|---|---|---|
| AWG | mm2 | in | mm | in | mm | KG/KM | Ω/km |
| Duplex | |||||||
| 2×18 | 0.82 | 0.03 | 0.762 | 0.231 | 5.859 | 48.45 | 22.4 |
| 2×16 | 1.31 | 0.03 | 0.762 | 0.256 | 6.492 | 63.86 | 14.1 |
| 2×14 | 2.08 | 0.03 | 0.762 | 0.285 | 7.244 | 86.06 | 8.88 |
| 2×12 | 3.31 | 0.045 | 1.143 | 0.353 | 8.956 | 133.17 | 5.58 |
| 2×10 | 5.26 | 0.06 | 1.524 | 0.463 | 11.752 | 222.53 | 3.51 |
| 2×8 | 8.37 | 0.06 | 1.524 | 0.559 | 14.205 | 332.63 | 2.23 |
| 2×6 | 13.3 | 0.06 | 1.524 | 0.628 | 15.949 | 456.25 | 1.4 |
| Triplex | |||||||
| 3×18 | 0.82 | 0.03 | 0.762 | 0.244 | 6.192 | 58.42 | 22.4 |
| 3×16 | 1.31 | 0.03 | 0.762 | 0.271 | 6.874 | 78.49 | 14.1 |
| 3×14 | 2.08 | 0.03 | 0.762 | 0.303 | 7.684 | 107.8 | 8.88 |
| 3×12 | 3.31 | 0.045 | 1.143 | 0.373 | 9.469 | 166.68 | 5.58 |
| 3×10 | 5.26 | 0.06 | 1.524 | 0.489 | 12.42 | 276.82 | 3.51 |
| 3×8 | 8.37 | 0.06 | 1.524 | 0.593 | 15.063 | 417.18 | 2.23 |
| 3×6 | 13.3 | 0.06 | 1.524 | 0.667 | 16.942 | 582.54 | 1.4 |
| Quadruplex | |||||||
| 4×18 | 0.82 | 0.03 | 0.762 | 0.266 | 6.75 | 71.04 | 22.4 |
| 4×16 | 1.31 | 0.03 | 0.762 | 0.296 | 7.514 | 96.48 | 14.1 |
| 4×14 | 2.08 | 0.03 | 0.762 | 0.332 | 8.423 | 133.84 | 8.88 |
| 4×12 | 3.31 | 0.045 | 1.143 | 0.407 | 10.328 | 206.39 | 5.58 |
| 4×10 | 5.26 | 0.06 | 1.524 | 0.533 | 13.542 | 341.51 | 3.51 |
| 4×8 | 8.37 | 0.06 | 1.524 | 0.65 | 16.503 | 517.78 | 2.23 |
| 4×6 | 13.3 | 0.06 | 1.524 | 0.733 | 18.608 | 729.61 | 1.4 |
