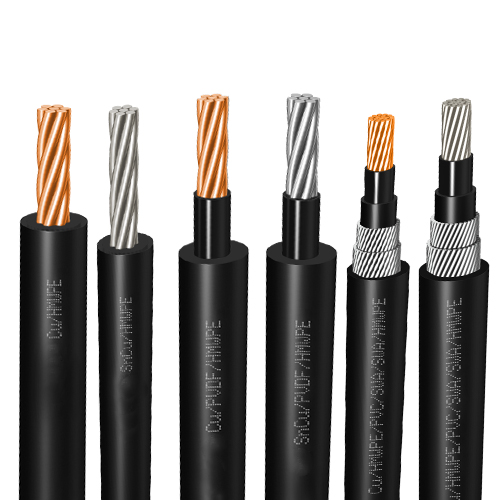

Cathodic Protection Cables,CP cable,hmwpe cathodic protection cable,hmwpe cable
A Cathodic Protection Cable is typically a single conductor cable that is intended to carry a DC current to anodes and cathodes in a cathodic protection system.It will eliminate and prevention the corrosion of steel pipelines and steel storage tanks, offshore oil and gas installations, offshore wind farms, ships and other maritime applications. for directly buried installations, and installation in air or water.
- Expertos
- Garantía de calidad
- Entrega rápida
- Bonificaciones por compras
Cathodic Protection Cables available include designs with Plain or Tinned annealed copper, Stranded Class 2 conductors, (Flexible Class 5 available on request). Insulated and sheathed designs both with and without armour.
Depending upon the type of insulation designs are available from 6mm2 up to and including 185mm2.
Cathodic Protection Cable Design
- Types of Insulations
LDPE (Low-density polyethylene)
MDPE (Medium density polyethylene)
HMWPE (High molecular weight polyethylene)
XLPE (Cross-linked polyethylene)
PVDF (polyvinylidene fluoride – Kynar),esistance to acids and chemicals, and UV resistance and are flame retardant. - Types of moisture resistance Sheaths
PVC (Polyvinylchloride)
MDPE (Medium density polyethylene)
HMWPE (High molecular weight polyethylene).
Armour Features: Galvanised Steel Wires applied helically – other types of armour are available on request. - Cable standard:
upon IEC 60502-1 ( EN: BS EN 60228); other Standards available
TECHNICAL SPECIFICATION
- Cables sheathed with PVC:
Minimum ambient air temperature -15oC
Maximum continuous conductor temperature +90oC - Cables sheathed with Polyethylene or PVDF:
Minimum ambient air temperature -55oC
Maximum continuous conductor temperature +90oC - Cables insulated with PVDF:
Minimum ambient air temperature -55oC
Maximum continuous conductor temperature +105oC - Minimum bending radius – Fixed Installation:
≤ 8mm 4D
>8 ≤12mm 5D
>12 ≤20mm 6D
>12mm 6D - Maximum allowable pulling tension:
50N/mm2 during installation
15N/mm2 in service
- Custom Especificación by email: supplier@huadongcablegroup.com
PRODUCT TYPES:
- HMWPE Armoured Cathodic Protection Cable
- Conductors: Plain annealed copper conductors – BS EN 60228 Class 2
- Insulation: Kynar- Polyvinylidene fluoride (PVDF)
- Inner Sheath: High Molecular Weight Polyethylene (HMWPE)
- Armour: Galvanised steel wire
- Outer Sheath: High Molecular Weight Polyethylene (HMWPE)
- Standard size range: 10mm2 to 50mm2 (up to 185mm2 available on request)
- Standard insulation colours are RED and BLACK
- *Other colours are available on request.
- Custom Especificación by email: supplier@huadongcablegroup.com
- HMWPE Cathodic Protection Cable
- Conductors:Tinned annealed copper conductors – BS EN 60228 Class 2
- Insulation: Kynar- Polyvinylidene fluoride (PVDF)
- Sheath: High Molecular Weight Polyethylene (HMWPE)
- Standard size range: 10mm2 to 50mm2 (up to 185mm2 available on request)
- Standard colours are RED and BLACK
- *Other colours are available on request.
- Custom Especificación by email: supplier@huadongcablegroup.com
- PVC Armoured Cathodic Protection Cable
- Conductors: Plain annealed copper conductors – BS EN 60228 Class 2
- Insulation: Kynar- Polyvinylidene fluoride (PVDF)
- Inner Sheath: High Density Polyethylene (HDPE)
- Armour: Galvanised steel wire
- Outer Sheath: High Density Polyethylene (HDPE)
- Standard size range: 10mm2 to 50mm2 (up to 185mm2 available on request)
- Standard insulation colours are RED and BLACK
- Other colours are available on request.
- Custom Especificación by email: supplier@huadongcablegroup.com
- XLPE/XLPE Cathodic Protection Cable
- Conductors: Plain annealed copper conductors – BS EN 60228 Class 2 Insulation: Cross-linked polythene (XLPE)
- Sheath: Cross-linked polythene (XLPE)
- Standard size range: 10mm2 to 50mm2 (up to 400mm2 available on request)
- Standard colours are RED and BLACK
- Custom Especificación by email: supplier@huadongcablegroup.com
- XLPE/PVC Cathodic Protection Cable
- Conductors: Plain annealed copper conductors – BS EN 60228 Class 2
- Insulation: Cross-linked polythene (XLPE)
- Sheath: Polyvinylchloride (PVC).
- Standard size range: 10mm2 to 50mm2 (up to 400mm2 available on request)
- Standard colours are RED and BLACK
- Other colours are available on request
- Custom Especificación by email: supplier@huadongcablegroup.com
- XLPE/HDPE Cathodic Protection Cable
- Conductors: Plain annealed copper conductors – BS EN 60228 Class 2
- Insulation: Cross-linked polythene (XLPE)
- Sheath: High-Density Polyethylene (HDPE).
- Standard size range: 10mm2 to 50mm2 (up to 400mm2 available on request)
- Standard colours are RED and BLACK
- *Other colours are available on request
- Custom Especificación by email: supplier@huadongcablegroup.com
- XLPE/PVC or XLPE/LS0H – RE4M1(R)
- Conductor: bare copper circular stranded, according to cl. 2 of BS EN 60228
- Insulation: XLPE compound according to IEC 60502
- Fillers: non-hygroscopic compound or LS0H non-hygroscopic compound
- Sheath: PVC or LS0H
- Standards: IEC 60502-1
- Custom Especificación by email: supplier@huadongcablegroup.com
- PLAIN ANNEALED COPPER 0.6/1KV LDPE INSULATED, NYLON SHEATHED WITH LDPE JACKET
- Cable for CP Groundbed
- Conductor: Plain stranded Copper Conductor to AS/NZS 1125
- Insulation: LDPE to AS 1049:2000 (Black)
- Sheath: Nylon (Black)
- Jacket: LDPE (Black)
- VOLTAGE RATING: 0.6/1Kv
- REFERENCE STANDARD: AS/NZS 5000.1:2005
- Custom Especificación by email: supplier@huadongcablegroup.com
