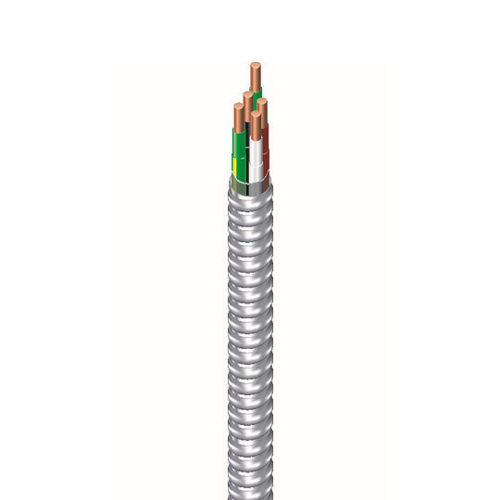

Conductores de tierra thhn-thwn aislados, tipo MC revestido de metal, armadura de aluminio con certificación UL
Los cables MC con construcción de puesta a tierra aislada están diseñados para aplicaciones que requieren conductores de puesta a tierra adicionales o redundantes. Son aptos para circuitos derivados, alimentadores y de distribución en aplicaciones comerciales, industriales, institucionales y multiresidenciales.
- Expertos
- Garantía de calidad
- Entrega rápida
- Bonificaciones por compras
Construcción:
- ASSEMBLY：
Stranded or solid soft drawn bare copper conductors with polyvinyl chloride (PVC)/nylon THHN/THWN insulation, a green insulated ground and an isolated insulated ground with yellow stripes on green insulation, are cabled together with a Mylar tape - ARMOR:
Overall aluminum interlocked armor applied over the assembly. The temperature rating is 90°C dry - STANDARDS & REFERENCES：
UL 83
UL 1569
UL 1685
UL Online Product Guide Info – Metal-Clad Cable (PJAZ)
Federal Specification A-A59544 (formerly J-C-30B)
FT4/IEEE 1202 (70,000 Btu/hr) Vertical Cable Tray Flame Test
NFPA 70 (National Electrical Code), Article 330
Listed for use in UL 1, 2 and 3 Hour Through Penetration Firestop Systems
REACH/RoHS-2 (Chemical Limit) Compliant - Custom Especificación by email: supplier@huadongcablegroup.com
Productos relacionados
Especificación
| Type MC cables Partial data sheet | |||
|---|---|---|---|
| CONDUCTOR SIZE AND COLORS | GROUNDING SIZE AND COLOR | WEIGHT (LBS/1000’) | OVERALL DIAMETER (INCHES) |
| SOLID CONDUCTOR COLORS 120/208V | |||
| 14-2 SOLID (BLACK/WHITE) | 14 SOLID (GREEN) | 77 | 0.439 |
| 14-3 SOLID (BLACK/WHITE/RED) | 14 SOLID (GREEN) | 94 | 0.464 |
| 14-4 SOLID (BLACK/WHITE/RED/BLUE) | 14 SOLID (GREEN) | 112 | 0.494 |
| 12-2 SOLID (BLACK/WHITE) | 12 SOLID (GREEN) | 105 | 0.475 |
| 12-2 SOLID (RED/WHITE) | 12 SOLID (GREEN) | 105 | 0.475 |
| 12-2 SOLID (BLUE/WHITE) | 12 SOLID (GREEN) | 105 | 0.475 |
| 12-3 SOLID (BLACK/WHITE/RED) | 12 SOLID (GREEN) | 129 | 0.505 |
| 12-3 SOLID (BLACK/WHITE/BLUE) | 12 SOLID (GREEN) | 129 | 0.505 |
| 12-3 SOLID (RED/WHITE/BLUE) | 12 SOLID (GREEN) | 129 | 0.505 |
| 12-4 SOLID (BLACK/WHITE/RED/BLUE) | 12 SOLID (GREEN) | 155 | 0.539 |
| 10-2 SOLID (BLACK/WHITE) | 10 SOLID (GREEN) | 150 | 0.542 |
| 10-2 SOLID (RED/WHITE) | 10 SOLID (GREEN) | 150 | 0.542 |
| 10-2 SOLID (BLUE/WHITE) | 10 SOLID (GREEN) | 150 | 0.542 |
| 10-3 SOLID (BLACK/WHITE/RED) | 10 SOLID (GREEN) | 189 | 0.58 |
| 10-4 SOLID (BLACK/WHITE/RED/BLUE) | 10 SOLID (GREEN) | 229 | 0.623 |
| STRANDED CONDUCTOR COLORS 120/208V | |||
| 12-2 STRANDED (BLACK/WHITE) | 12 STRANDED (GREEN) | 110 | 0.494 |
| 12-3 STRANDED (BLACK/WHITE/RED) | 12 STRANDED (GREEN) | 134 | 0.537 |
| 12-4 STRANDED (BLACK/WHITE/RED/BLUE) | 12 STRANDED (GREEN) | 164 | 0.564 |
| 10-2 STRANDED (BLACK/WHITE) | 10 STRANDED (GREEN) | 159 | 0.566 |
| 10-3 STRANDED (BLACK/WHITE/RED) | 10 STRANDED (GREEN) | 201 | 0.607 |
| 10-4 STRANDED (BLACK/WHITE/RED/BLUE) | 10 STRANDED (GREEN) | 242 | 0.653 |
| SOLID CONDUCTOR COLORS 277/480V | |||
| 12-2 SOLID (YELLOW/GRAY) | 12 SOLID (GREEN) | 105 | 0.475 |
| 12-2 SOLID (BROWN/GRAY) | 12 SOLID (GREEN) | 105 | 0.475 |
| 12-2 SOLID (ORANGE/GRAY) | 12 SOLID (GREEN) | 105 | 0.475 |
| 12-2 SOLID (PURPLE/GRAY) | 12 SOLID (GREEN) | 105 | 0.475 |
| 12-3 SOLID (BROWN/YELLOW/GRAY) | 12 SOLID (GREEN) | 129 | 0.539 |
| 12-3 SOLID (BROWN/ORANG/GRAY) | 12 SOLID (GREEN) | 129 | 0.539 |
| 12-3 SOLID (ORANGE/YELLOW/GRAY) | 12 SOLID (GREEN) | 129 | 0.539 |
| 12-4 SOLID (BROWN/ORANGE/YELLOW/GRAY) | 12 SOLID (GREEN) | 155 | 0.539 |
| 10-2 SOLID (ORANGE/GRAY) | 10 SOLID (GREEN) | 150 | 0.542 |
| 10-2 SOLID (YELLOW/GRAY) | 10 SOLID (GREEN) | 150 | 0.542 |
| 10-2 SOLID (BROWN/GRAY) | 10 SOLID (GREEN) | 150 | 0.542 |
| 10-3 SOLID (BROWN/ORANGE/GRAY) | 10 SOLID (GREEN) | 189 | 0.58 |
| 10-3 SOLID (BROWN/YELLOW/GRAY) | 10 SOLID (GREEN) | 189 | 0.58 |
| 10-4 SOLID (BROWN/ORANGE/YELLOW/GRAY) | 10 SOLID (GREEN) | 229 | 0.623 |
| STRANDED CONDUCTOR COLORS 277/480V | |||
| 12-2 STRANDED (YELLOW/GRAY) | 12 STRANDED (GREEN) | 110 | 0.494 |
| 12-2 STRANDED (BROWN/GRAY) | 12 STRANDED (GREEN) | 110 | 0.494 |
| 12-2 STRANDED (ORANGE/GRAY) | 12 STRANDED (GREEN) | 110 | 0.494 |
| 12-3 STRANDED (BROWN/YELLOW/GRAY) | 12 STRANDED (GREEN) | 134 | 0.537 |
| 12-3 STRANDED (BROWN/ORANGE/GRAY) | 12 STRANDED (GREEN) | 134 | 0.537 |
| 12-4 STRANDED (BROWN/ORANGE/YELLOW/GRAY) | 12 STRANDED (GREEN) | 164 | 0.564 |
| 10-2 STRANDED (BROWN/GRAY) | 10 STRANDED (GREEN) | 159 | 0.566 |
| 10-3 STRANDED (BROWN/ORANGE/GRAY) | 10 STRANDED (GREEN) | 201 | 0.607 |
| 10-4 STRANDED (BROWN/ORANGE/YELLOW/GRAY) | 10 STRANDED (GREEN) | 242 | 0.653 |
| INTERMEDIATE CONDUCTOR COLORS 120/208V | |||
| 8-2 STRANDED (BLACK/WHITE) | 10 STRANDED (GREEN) | 231 | 0.644 |
| 8-2 STRANDED (RED/WHITE) | 10 STRANDED (GREEN) | 231 | 0.644 |
| 8-2 STRANDED (BLUE/WHITE) | 10 STRANDED (GREEN) | 231 | 0.644 |
| 8-3 STRANDED (BLACK/WHITE/RED) | 10 STRANDED (GREEN) | 299 | 0.678 |
| 8-3 STRANDED (RED/BLUE/WHITE) | 10 STRANDED (GREEN) | 299 | 0.678 |
| 8-4 STRANDED (BLACK/WHITE/RED/BLUE) | 10 STRANDED (GREEN) | 378 | 0.793 |
| 6-2 STRANDED (BLACK/WHITE) | 8 STRANDED (GREEN) | 312 | 0.716 |
| 6-3 STRANDED (BLACK/WHITE/RED) | 8 STRANDED (GREEN) | 442 | 0.819 |
| 6-4 STRANDED (BLACK/WHITE/RED/BLUE) | 8 STRANDED (GREEN) | 546 | 0.89 |
| 4-3 STRANDED (BLACK/WHITE/RED) | 8 STRANDED (GREEN) | 635 | 0.986 |
| 4-4 STRANDED (BLACK/WHITE/RED/BLUE) | 8 STRANDED (GREEN) | 797 | 1.077 |
| 3-3 STRANDED (BLACK/WHITE/RED) | 6 STRANDED (GREEN) | 785 | 1.053 |
| 3-4 STRANDED (BLACK/WHITE/RED/BLUE) | 6 STRANDED (GREEN) | 985 | 1.152 |
| 2-3 STRANDED (BLACK/WHITE/RED) | 6 STRANDED (GREEN) | 936 | 1.13 |
| 2-4 STRANDED (BLACK/WHITE/RED/BLUE) | 6 STRANDED (GREEN) | 1195 | 1.239 |
| INTERMEDIATE CONDUCTOR COLORS 277/480V | |||
| 8-2 STRANDED (BROWN/GRAY) | 10 STRANDED (GREEN) | 231 | 0.644 |
| 8-2 STRANDED (YELLOW/GRAY) | 10 STRANDED (GREEN) | 231 | 0.644 |
| 8-2 STRANDED (ORANGE/GRAY) | 10 STRANDED (GREEN) | 231 | 0.644 |
| 8-3 STRANDED (BROWN/ORANGE/GRAY) | 10 STRANDED (GREEN) | 299 | 0.678 |
| 8-3 STRANDED (BROWN/YELLOW/GRAY) | 10 STRANDED (GREEN) | 299 | 0.678 |
| 6-2 STRANDED (BROWN/GRAY) | 8 STRANDED (GREEN) | 333 | 0.716 |
| 6-2 STRANDED (YELLOW/GRAY) | 8 STRANDED (GREEN) | 333 | 0.716 |
| 6-3 STRANDED (BROWN/ORANGE/GRAY) | 8 STRANDED (GREEN) | 441 | 0.819 |
| 6-3 STRANDED (BROWN/ORANGE/YELLOW) | 8 STRANDED (GREEN) | 441 | 0.819 |
| 6-4 STRANDED (BROWN/ORANGE/YELLOW/GRAY) | 8 STRANDED (GREEN) | 545 | 0.89 |
| 4-3 STRANDED (BROWN/ORANGE/YELLOW) | 8 STRANDED (GREEN) | 635 | 0.985 |
| 4-4 STRANDED (BROWN/ORANGE/YELLOW/GRAY) | 8 STRANDED (GREEN) | 800 | 1.076 |
| 2-3 STRANDED (BROWN/ORANGE/YELLOW) | 6 STRANDED (GREEN) | 921 | 1.034 |
| 2-4 STRANDED (BROWN/ORANGE/YELLOW/GRAY) | 6 STRANDED (GREEN) | 1181 | 1.238 |
| For allowable ampacities, refer to NEC 310.15. Available in sizes up to 750 kcmil. | |||
