Cable de control multinúcleo (apantallado)

multi-cores-control-cable

Fabricante profesional de cables de control en China. Cumplimos con todos sus requisitos de cables de control (de 2 a 30 núcleos).

Producimos cables de alimentación de 0,6/1 kV y 1/35 kV, cables ABC, cables de instrumentación, cables de control, cables de construcción, cables de caucho, etc. Suministramos diferentes estándares para la industria de cables de alimentación.

(2-24 núcleos) – Cables de control

El tamaño (2-30 núcleos) de los cables de control se puede personalizar según sus requisitos.

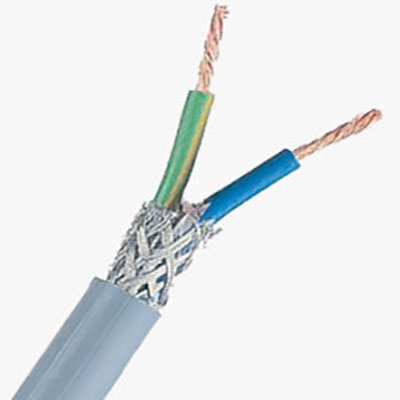

2 Core Control Cable

Conductor: Cobre
Núcleo: Bipolar
Aislamiento: PVC
Cubierta interior: PVC color negro
Blindaje: Sin blindaje o blindaje de cinta de cobre recocido

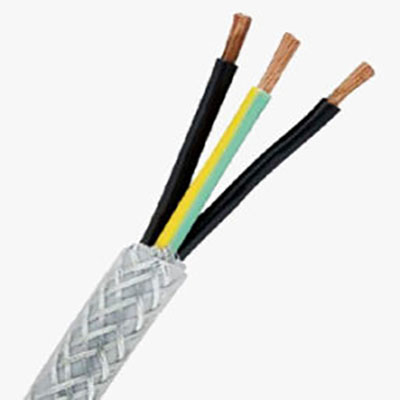

3 Core Control Cable

Conductor: Cobre
Núcleo: Tripolar
Aislamiento: PVC
Cubierta interior: PVC color negro
Blindaje: Sin blindaje o blindaje de cinta de cobre recocido

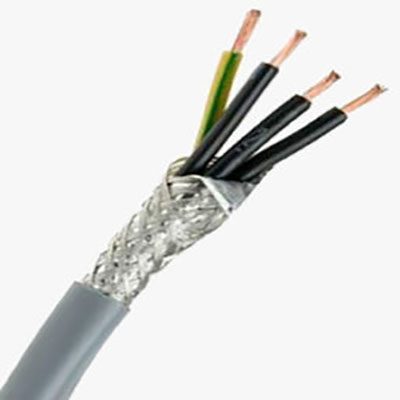

4 Core Control Cable

Conductor: Cobre
Núcleo: 4 núcleos
Aislamiento: PVC
Cubierta interior: PVC color negro
Blindaje: Sin blindaje o blindaje de cinta de cobre recocido

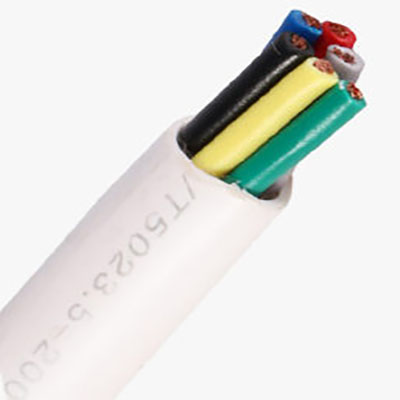

5 Core Control Cable

Conductor: Cobre
Núcleo: 5 núcleos
Aislamiento: PVC
Cubierta interior: PVC color negro
Blindaje: Sin blindaje o blindaje de cinta de cobre recocido

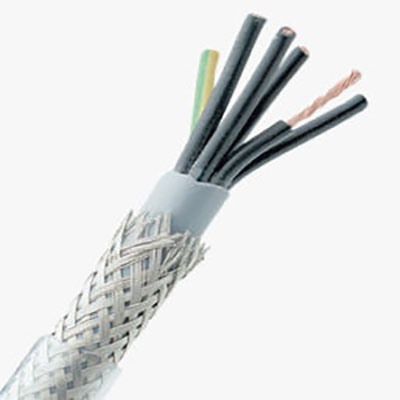

6 Core Control Cable

Conductor: Cobre
Núcleo: 6 núcleos
Aislamiento: PVC
Cubierta interior: PVC color negro
Blindaje: Sin blindaje o blindaje de cinta de cobre recocido

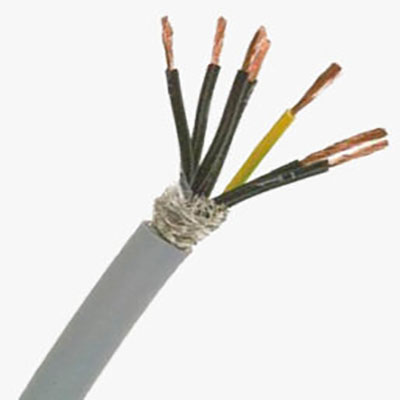

7 Core Control Cable

Conductor: Cobre
Núcleo: 7 núcleos
Aislamiento: PVC
Cubierta interior: PVC color negro
Blindaje: Sin blindaje o blindaje de cinta de cobre recocido

8 Core Control Cable

Conductor: Cobre
Núcleo: 8 núcleos
Aislamiento: PVC
Cubierta interior: PVC color negro
Blindaje: Sin blindaje o blindaje de cinta de cobre recocido

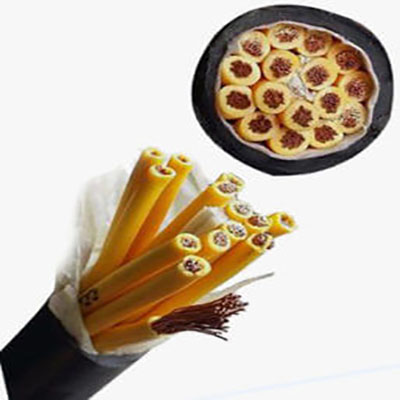

16 Core Control Cable

Conductor: Cobre
Núcleo: 16 núcleos
Aislamiento: PVC
Cubierta interior: PVC color negro
Blindaje: Sin blindaje o blindaje de cinta de cobre recocido

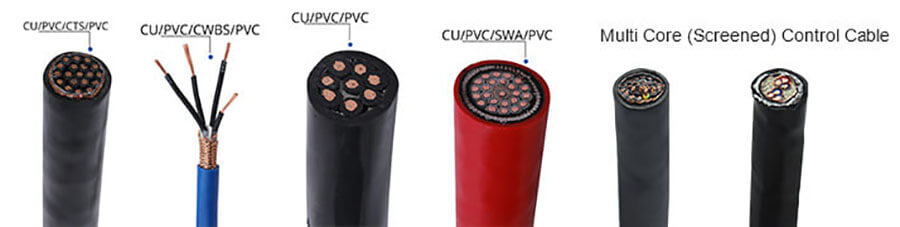

Multi Core Control Cable

Conductor: Cobre
Núcleo: 2-24 núcleos
Aislamiento: PVC
Cubierta interior: PVC color negro
Blindaje: Sin blindaje o blindaje de cinta de cobre recocido

Muilti-Core 0.6/1kv (CVV) Unshielded Control Cable

4 Core CVV 0.6/1KV Control Cable

5 Core CVV 0.6/1KV Control Cable

6 Core CVV 0.6/1KV Control Cable

7 Core CVV 0.6/1KV Control Cable

8 Core CVV 0.6/1KV Control Cable

No. of core	Nominal cross-sectional area	No.& dia.	Thickness	Thickness	Overall diameter (Approx.)	Maximum conductor resistance	Minimum insulation resistance	Cable	Standard Length
		of wires	of insulation	of sheath		(at20C)	(at70C)	weight (Approx.)
	mm2	No./mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
4	0.5	7/0.30	0.8	1.8	11	36	0.0162	130	500/D
	0.75	7/0.37	0.8	1.8	11.5	24.5	0.0142	150	500/D
	1	7/0.40	0.8	1.8	11.5	18.1	0.0135	160	500/D
	1.5	7/0.50	0.8	1.8	12.5	12.1	0.0115	195	500/D
	2.5	7/0.67	0.8	1.8	14	7.41	0.0093	265	500/D
	4	7/0.85	1	1.8	16.5	4.61	0.0092	390	500/D
	6	7/1.04	1	1.8	17	3.08	0.0078	510	500/D

No. of core	Nominal cross-sectional area	No.& dia.	Thickness	Thickness	Overall diameter (Approx.)	Maximum conductor resistance	Minimum insulation resistance	Cable	Standard Length
		of wires	of insulation	of sheath		(at20C)	(at70C)	weight (Approx.)
	mm2	No./mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
5	0.5	7/0.30	0.8	1.8	11.5	36	0.0162	150	500/D
	0.75	7/0.37	0.8	1.8	12.5	24.5	0.0142	175	500/D
	1	7/0.40	0.8	1.8	12.5	18.1	0.0135	190	500/D
	1.5	7/0.50	0.8	1.8	13.5	12.1	0.0115	230	500/D
	2.5	7/0.67	0.8	1.8	15	7.41	0.0093	320	500/D
	4	7/0.85	1	1.8	18	4.61	0.0092	470	500/D
	6	7/1.04	1	1.8	19.5	3.08	0.0078	620	500/D

No. of core	Nominal cross-sectional area	No.& dia.	Thickness	Thickness	Overall diameter (Approx.)	Maximum conductor resistance	Minimum insulation resistance	Cable	Standard Length
		of wires	of insulation	of sheath		(at20C)	(at70C)	weight (Approx.)
	mm2	No./mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
6	0.5	7/0.30	0.8	1.8	12.5	36	0.0162	165	500/D
	0.75	7/0.37	0.8	1.8	13	24.5	0.0142	190	500/D
	1	7/0.40	0.8	1.8	13.5	18.1	0.0135	205	500/D
	1.5	7/0.50	0.8	1.8	14.5	12.1	0.0115	255	500/D
	2.5	7/0.67	0.8	1.8	16	7.41	0.0093	355	500/D
	4	7/0.85	1	1.8	19.5	4.61	0.0092	525	500/D
	6	7/1.04	1	1.8	21	3.08	0.0078	690	500/D

No. of core	Nominal cross-sectional area	No.& dia.	Thickness	Thickness	Overall diameter (Approx.)	Maximum conductor resistance	Minimum insulation resistance	Cable	Standard Length
		of wires	of insulation	of sheath		(at20C)	(at70C)	weight (Approx.)
	mm2	No./mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
7	0.5	7/0.30	0.8	1.8	12.5	36	0.0162	170	500/D
	0.75	7/0.37	0.8	1.8	13	24.5	0.0142	200	500/D
	1	7/0.40	0.8	1.8	13.5	18.1	0.0135	215	500/D
	1.5	7/0.50	0.8	1.8	14.5	12.1	0.0115	270	500/D
	2.5	7/0.67	0.8	1.8	16	7.41	0.0093	380	500/D
	4	7/0.85	1	1.8	19.5	4.61	0.0092	570	500/D
	6	7/1.04	1	1.8	21	3.08	0.0078	795	500/D

No. of core	Nominal cross-sectional area	No.& dia.	Thickness	Thickness	Overall diameter (Approx.)	Maximum conductor resistance	Minimum insulation resistance	Cable	Standard Length
		of wires	of insulation	of sheath		(at20C)	(at70C)	weight (Approx.)
	mm2	No./mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
8	0.5	7/0.30	0.8	1.8	13.5	36	0.0162	195	500/D
	0.75	7/0.37	0.8	1.8	14	24.5	0.0142	230	500/D
	1	7/0.40	0.8	1.8	14.5	18.1	0.0135	250	500/D
	1.5	7/0.50	0.8	1.8	15.5	12.1	0.0115	310	500/D
	2.5	7/0.67	0.8	1.8	17.5	7.41	0.0093	440	500/D
	4	7/0.85	1	1.8	21	4.61	0.0092	660	500/D
	6	7/1.04	1	1.8	23	3.08	0.0078	875	500/D

Multi-Core 0.6/1KV (CVV-S) Screened Control Cable

4 Core CVV-S 0.6/1KV Control Cable

5 Core CVV-S 0.6/1KV Control Cable

6 Core CVV-S 0.6/1KV Control Cable

7 Core CVV-S 0.6/1KV Control Cable

8 Core CVV-S 0.6/1KV Control Cable

No. of core	Nominal cross-sectional area	No.& dia.	Thickness	Thickness of inner sheath	Thickness	Overall diameter (Approx.)	Maximum conductor resistance	Minimum insulation resistance	Cable	Standard Length
		of wires	of insulation		of outer sheath		(at20C)	(at70C)	weight (Approx.)
	mm2	No./mm	mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
4	0.5	7/0.30	0.8	1	1.8	13.5	36	0.0162	220	500/D
	0.75	7/0.37	0.8	1	1.8	14	24.5	0.0142	245	500/D
	1	7/0.40	0.8	1	1.8	14.5	18.1	0.0135	260	500/D
	1.5	7/0.50	0.8	1	1.8	15.5	12.1	0.0115	300	500/D
	2.5	7/0.67	0.8	1	1.8	16.5	7.41	0.0093	385	500/D
	4	7/0.85	1	1	1.8	19	4.61	0.0092	530	500/D
	6	7/1.04	1	1	1.8	20.5	3.08	0.0078	660	500/D

No. of core	Nominal cross-sectional area	No.& dia.	Thickness	Thickness of inner sheath	Thickness	Overall diameter (Approx.)	Maximum conductor resistance	Minimum insulation resistance	Cable	Standard Length
		of wires	of insulation		of outer sheath		(at20C)	(at70C)	weight (Approx.)
	mm2	No./mm	mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
5	0.5	7/0.30	0.8	1	1.8	14.5	36	0.0162	250	500/D
	0.75	7/0.37	0.8	1	1.8	15	24.5	0.0142	280	500/D
	1	7/0.40	0.8	1	1.8	15.5	18.1	0.0135	295	500/D
	1.5	7/0.50	0.8	1	1.8	16.5	12.1	0.0115	345	500/D
	2.5	7/0.67	0.8	1	1.8	18	7.41	0.0093	445	500/D
	4	7/0.85	1	1	1.8	20.5	4.61	0.0092	620	500/D
	6	7/1.04	1	1	1.8	22.5	3.08	0.0078	780	500/D

No. of core	Nominal cross-sectional area	No.& dia.	Thickness	Thickness of inner sheath	Thickness	Overall diameter (Approx.)	Maximum conductor resistance	Minimum insulation resistance	Cable	Standard Length
		of wires	of insulation		of outer sheath		(at20C)	(at70C)	weight (Approx.)
	mm2	No./mm	mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
6	0.5	7/0.30	0.8	1	1.8	15.5	36	0.0162	270	500/D
	0.75	7/0.37	0.8	1	1.8	16	24.5	0.0142	305	500/D
	1	7/0.40	0.8	1	1.8	16.5	18.1	0.0135	320	500/D
	1.5	7/0.50	0.8	1	1.8	17.5	12.1	0.0115	375	500/D
	2.5	7/0.67	0.8	1	1.8	19	7.41	0.0093	290	500/D
	4	7/0.85	1	1	1.8	22	4.61	0.0092	685	500/D
	6	7/1.04	1	1	1.8	24	3.08	0.0078	865	500/D

No. of core	Nominal cross-sectional area	No.& dia.	Thickness	Thickness of inner sheath	Thickness	Overall diameter (Approx.)	Maximum conductor resistance	Minimum insulation resistance	Cable	Standard Length
		of wires	of insulation		of outer sheath		(at20C)	(at70C)	weight (Approx.)
	mm2	No./mm	mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
7	0.5	7/0.30	0.8	1	1.8	15.5	36	0.0162	275	500/D
	0.75	7/0.37	0.8	1	1.8	16	24.5	0.0142	315	500/D
	1	7/0.40	0.8	1	1.8	16.5	18.1	0.0135	330	500/D
	1.5	7/0.50	0.8	1	1.8	17.5	12.1	0.0115	395	500/D
	2.5	7/0.67	0.8	1	1.8	19	7.41	0.0093	520	500/D
	4	7/0.85	1	1	1.8	22	4.61	0.0092	730	500/D
	6	7/1.04	1	1	1.8	24	3.08	0.0078	930	500/D

No. of core	Nominal cross-sectional area	No.& dia.	Thickness	Thickness of inner sheath	Thickness	Overall diameter (Approx.)	Maximum conductor resistance	Minimum insulation resistance	Cable	Standard Length
		of wires	of insulation		of outer sheath		(at20C)	(at70C)	weight (Approx.)
	mm2	No./mm	mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
8	0.5	7/0.30	0.8	1	1.8	16	36	0.0162	310	500/D
	0.75	7/0.37	0.8	1	1.8	17	24.5	0.0142	350	500/D
	1	7/0.40	0.8	1	1.8	17	18.1	0.0135	370	500/D
	1.5	7/0.50	0.8	1	1.8	18.5	12.1	0.0115	445	500/D
	2.5	7/0.67	0.8	1	1.8	20	7.41	0.0093	590	500/D
	4	7/0.85	1	1	1.8	23.5	4.61	0.0092	835	500/D
	6	7/1.04	1	1	1.8	25.5	3.08	0.0078	1070	500/D

Multi-Core 0.6/1KV (CVV-SWA) Armoure Control Cable

4 Core CVV-SWA 0.6/1KV Control Cable

5 Core CVV-SWA 0.6/1KV Control Cable

6 Core CVV-SWA 0.6/1KV Control Cable

7 Core CVV-SWA 0.6/1KV Control Cable

8 Core CVV-SWA 0.6/1KV Control Cable

No.of core	Nominal cross-sectional area	No.&dia.of wires	Thickness of insulation	Thickness of inner sheath	Diameter of steel wire armour	Thickness of outer sheath	Overall diameter (Approx.)	Maximum conductor (at20C)	Minimum insulation resistance (at70C)	Cable weight (Approx.)	Standard Length
	mm2	No./mm	mm	mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
4	0.5	7/0.30	0.8	1.2	0.8	1.8	16.5	36	0.0162	380	500/D
	0.75	7/0.37	0.8	1.2	0.8	1.8	17	24.5	0.0142	410	500/D
	1	7/0.40	0.8	1.2	0.8	1.8	17	18.1	0.0135	425	500/D
	1.5	7/0.50	0.8	1.2	0.8	1.8	18	12.1	0.0115	480	500/D
	2.5	7/0.67	0.8	1.2	1.25	1.8	20.5	7.41	0.0093	715	500/D
	4	7/0.85	1	1.2	1.25	1.8	23	4.61	0.0092	915	500/D
	6	7/1.04	1	1.2	1.25	1.8	24.5	3.08	0.0078	1075	500/D

No.of core	Nominal cross-sectional area	No.&dia.of wires	Thickness of insulation	Thickness of inner sheath	Diameter of steel wire armour	Thickness of outer sheath	Overall diameter (Approx.)	Maximum conductor (at20C)	Minimum insulation resistance (at70C)	Cable weight (Approx.)	Standard Length
	mm2	No./mm	mm	mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
5	0.5	7/0.30	0.8	1.2	0.8	1.8	17	36	0.0162	420	500/D
	0.75	7/0.37	0.8	1.2	0.8	1.8	18	24.5	0.0142	455	500/D
	1	7/0.40	0.8	1.2	1.25	1.8	19	18.1	0.0135	595	500/D
	1.5	7/0.50	0.8	1.2	1.25	1.8	20	12.1	0.0115	665	500/D
	2.5	7/0.67	0.8	1.2	1.25	1.8	21.5	7.41	0.0093	805	500/D
	4	7/0.85	1	1.2	1.25	1.8	24.5	4.61	0.0092	1040	500/D
	6	7/1.04	1	1.2	1.6	1.8	27	3.08	0.0078	1385	500/D

No.of core	Nominal cross-sectional area	No.&dia.of wires	Thickness of insulation	Thickness of inner sheath	Diameter of steel wire armour	Thickness of outer sheath	Overall diameter (Approx.)	Maximum conductor (at20C)	Minimum insulation resistance (at70C)	Cable weight (Approx.)	Standard Length
	mm2	No./mm	mm	mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
6	0.5	7/0.30	0.8	1.2	0.8	1.8	18	36	0.0162	450	500/D
	0.75	7/0.37	0.8	1.2	1.25	1.8	19.5	24.5	0.0142	610	500/D
	1	7/0.40	0.8	1.2	1.25	1.8	20	18.1	0.0135	635	500/D
	1.5	7/0.50	0.8	1.2	1.25	1.8	21	12.1	0.0115	715	500/D
	2.5	7/0.67	0.8	1.2	1.25	1.8	22.5	7.41	0.0093	870	500/D
	4	7/0.85	1	1.2	1.6	1.8	26.5	4.61	0.0092	1270	500/D
	6	7/1.04	1	1.2	1.6	1.8	28.5	3.08	0.0078	1515	500/D

No.of core	Nominal cross-sectional area	No.&dia.of wires	Thickness of insulation	Thickness of inner sheath	Diameter of steel wire armour	Thickness of outer sheath	Overall diameter (Approx.)	Maximum conductor (at20C)	Minimum insulation resistance (at70C)	Cable weight (Approx.)	Standard Length
	mm2	No./mm	mm	mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
7	0.5	7/0.30	0.8	1.2	0.8	1.8	18	36	0.0162	455	500/D
	0.75	7/0.37	0.8	1.2	1.25	1.8	19.5	24.5	0.0142	620	500/D
	1	7/0.40	0.8	1.2	1.25	1.8	20	18.1	0.0135	650	500/D
	1.5	7/0.50	0.8	1.2	1.25	1.8	21	12.1	0.0115	730	500/D
	2.5	7/0.67	0.8	1.2	1.25	1.8	22.5	7.41	0.0093	895	500/D
	4	7/0.85	1	1.2	1.6	1.8	26.5	4.61	0.0092	1315	500/D
	6	7/1.04	1	1.2	1.6	1.8	28.5	3.08	0.0078	1580	500/D

No.of core	Nominal cross-sectional area	No.&dia.of wires	Thickness of insulation	Thickness of inner sheath	Diameter of steel wire armour	Thickness of outer sheath	Overall diameter (Approx.)	Maximum conductor (at20C)	Minimum insulation resistance (at70C)	Cable weight (Approx.)	Standard Length
	mm2	No./mm	mm	mm	mm	mm	mm	Ohm/km	Ohm/km	kg/km	m
8	0.5	7/0.30	0.8	1.2	1.25	1.8	20	36	0.0162	625	500/D
	0.75	7/0.37	0.8	1.2	1.25	1.8	20.5	24.5	0.0142	680	500/D
	1	7/0.40	0.8	1.2	1.25	1.8	21	18.1	0.0135	710	500/D
	1.5	7/0.50	0.8	1.2	1.25	1.8	22	12.1	0.0115	810	500/D
	2.5	7/0.67	0.8	1.2	1.25	1.8	24	7.41	0.0093	995	500/D
	4	7/0.85	1	1.2	1.6	1.8	28	4.61	0.0092	1470	500/D
	6	7/1.04	1	1.2	1.6	1.8	30	3.08	0.0078	1770	500/D
