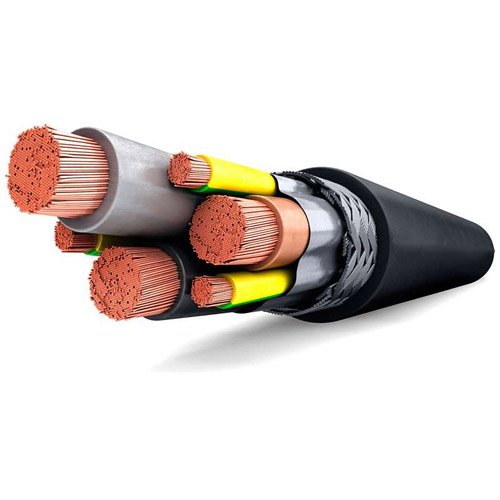

Shield EPR/XLPE/XLPO VFD (Variable Frequency Drive) Cable

VFD cables are designed with three phase conductors and a grounding conductor, which may be split according to the configuration of the cable. They are also low smoke emitting and halogen free for extra safety. They are flexible cables suitable for fixed installations.
These shielded multi-conductor cables have a black thermoplastic elastomer (TPE) outer jacket, and are available with 4 conductors in up to 2 AWG wire size.
A variety of constructions and voltages are available including 600V, 2KV, 2KV armored & sheathed, and 8KV and 15KV medium voltage armored & sheathed.
Grounding systems are offered in full conductor size, 3 symmetrical bare, and 3 symmetrical insulated. Shielding options include copper tape shield, tinned copper braid + poly aluminum tape, and tinned copper armor + aluminum poly tape.
Whether onshore or offshore, in a refinery or on a platform, HUADONG Cable has the right VFD power cable for your application.

• Custom Especificación by email: supplier@huadongcablegroup.com

Product Types：

4 core EMC VFD XLPE  Metal screen Cable for VFD use

• Operating Voltage: 0.6/1 kV
• Conductor: Stranded Annealed Copper (IEC/EN 60228, Class 5)
• Insulation: XLPE (Cross-Linked Polyethylene) Identification – HD 308 S2
• Lay-up: 4 cores twisted together
• Separator: Al-PET Foil
• Screen: Tinned Copper Wire Braid
• Outer Jacket: Halogen Free Flame Retardant Compound (LSZH) RAL 9005 – Black
• Temperature Range Operating: -30°C…+90°C
• Application： Used in frequency converter-controlled motors for control and/or power purposes, and suitable for use in dry, moist or wet environments in heavy industries. HFFR types are less flammable in case of fire, mostly self-extinguishing, have low smoke density and they do not emit poisonous and corrosive gasses during a fire.
• Custom Especificación by email: supplier@huadongcablegroup.com

Obtener Presupuesto

3+3Core EMC VFD XLPE Cable Metal screen Cable for VFD use

• Operating Voltage: 0.6/1 kV
• Conductor: Electrolytic copper, class 5 (flexible)
• Grounding Conductor: The grounding conductor is divided into three conductors; the equivalent cross section is approximately 50% of the section of the phase conductor.
• Insulation: Cross-linked polyethylene (XLPE)
• 4G : gray + brown + black + Yellow/Green (up to 10 mm2)
• 3x + 3G : gray + brown + black + Yellow/Green (3G) (from 16 mm2)
• Screen: Aluminium-polyester tape screen, helically placed over the insulated conductors. Over the tape there is a tinned copper braid screen. The tape and the braid act as a double screen to cut out all of the electromagnetic interference.
• Outer Jacket: Polyolefin LSZH outer sheath with ripcord to allows for ease of stripping of the outer jacket
• Custom Especificación by email: supplier@huadongcablegroup.com

Obtener Presupuesto

3+3Core EMC VFD Rubber EPR Cu metal shield Cable  for VFD use

• Operating Voltage: 0.6/1 kV,Up to 1800/3300 V AC
• Conductor: Circular electrolytic bare copper / tinned copper (stranded / flexible)
• Insulation: XLPE or EPR or HEPR
• Screening: Combination of copper tape and copper wire braid or double layer of copper tape and concentric braiding
• Outer Sheath: PVC / ZHFR / SHF1 / SHF2
• Application
  This construction of metallic layer over the core / cable will reduce the noise / strong electric field around the core / earthing of all spikes generated during the operation.
• construction:Metallic layer over the core / cable will reduce the noise / strong electric field around the core / earthing of all spikes generated during the operation.
• Custom Especificación by email: supplier@huadongcablegroup.com

Obtener Presupuesto

 3+3 Core EMC XLPO  Metal Screen Cable for VFD use

• Voltage: 600/1000V Type TC-ER, -25°C to 90°C
• Conductor: Stranded tinned copper circuit conductors
• Insulation: XLPO(Crossed-linked polyolefin, flexible and low dielectric)
• Color Code: 262MCM and larger: black and numbered
• 4/0AWG and smaller: red, white, black
• Grounding Cable: 3 Symmetrical Bare Grounds
• Shield Layer: Copper Tape Shield
• Jacket: Black sunlight resistant polyvinyl chloride (PVC)
• Advantage Feature:
  Type TC-ER 600V
  1kV Flexible Motor Supply Cable (up to 4/0 AWG)
  90°C Temperature Rating
  Sunlight Resistant
  Oil Resistant
• Custom Especificación by email: supplier@huadongcablegroup.com
